• Single mode and multimode fiber optic models
• Drivers for Windows 10 to Windows XP, Linux, and FreeBSD
• Support of 32-bit and 64-bit Windows and Linux technologies
• Software application sample
• Long life products
• Works in PCI Express x1 to x16 slots
• 16384 connections
• Free technical support

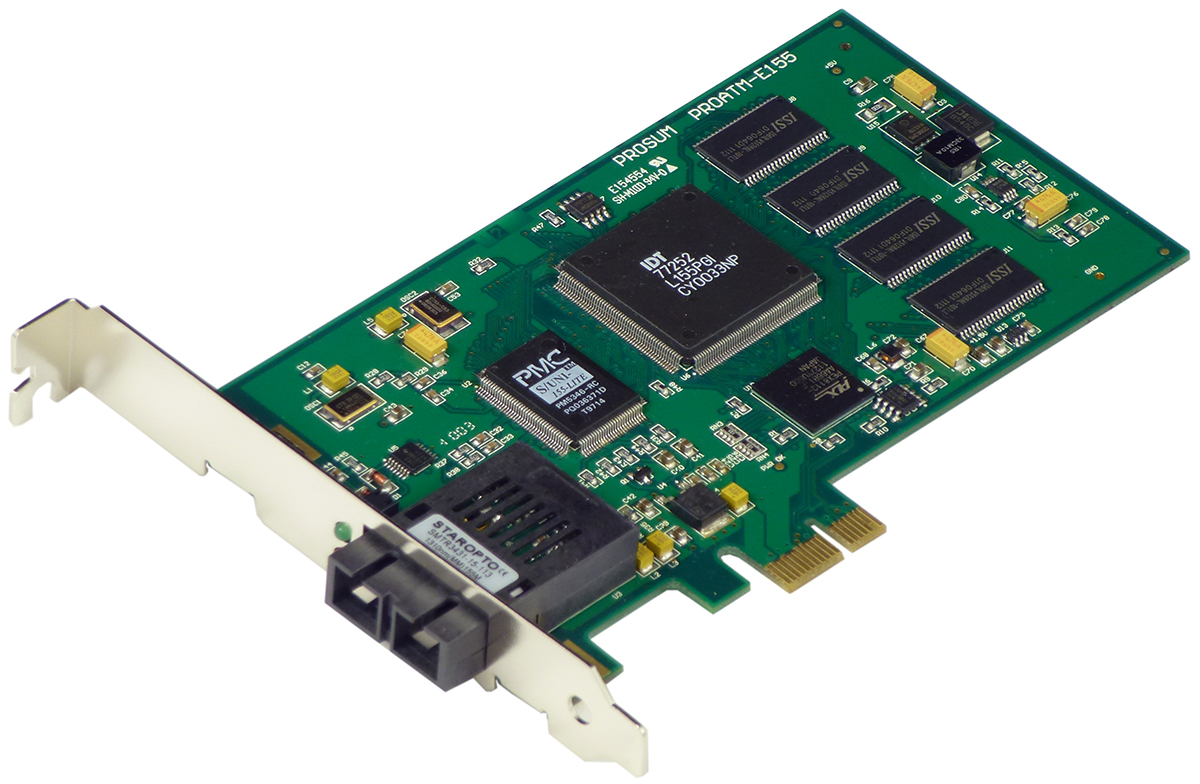

The PROATM-E155 ATM network adapters are intended for servers, routers and test benches that connect to ATM fiber optic or UTP networks (STS/STM-1/OC3). Their performance, reliability, level of compatibility and cost effectiveness make them the best ATM adapters for all applications involving a 155-Mbps ATM connection.

Examples of use

Connection of workstations and servers; implementation of ATM/Ethernet cost-effective border routers; PPPoA and PPPoE DSLAM connections; traffic generation for AAL0, AAL2 and AAL5 test bench; monitoring; transmission of video and/or sound into several independent channels.

Models

Model	Media	Connector	Max length	Connections ATM
PROATM-E155F	Multimode Fiber	SC duplex	2 Km	16384
PROATM-E155FM	Single mode Fiber	SC duplex	15 Km	16384
PROATM-E155FLH	Single mode Fiber	SC duplex	40 Km	16384



Operating System Compatibility

Windows 11, 10, Windows 8, Windows 7, Windows Vista, and Windows XP: the new PROATM-WDM package makes it possible to communicate on ATM networks using Classical IP and Multiprotocol (RFC 2684) with the UBR, CBR and VBR qualities of service. It is compatible with Winsock for TCP/IP based applications, and an API using system calls permits to develop software applications based on raw ATM. It supports the 32-bit and 64-bit technologies.

Windows XP and Windows Server 2003: The NDIS 5.0 driver give access to the Microsoft ATM software layers integrated into Windows XP and Windows Server 2003 on 32-bit and 64-bit architectures. They support the UBR, CBR, VBR and ABR QoS and they are compatible with Winsock2.

Linux: A rich set of functions is available on this operating system. Download the linux-atm package from ATM on Linux or linux-atm-2.4.2.2. The proatm-linux.tgz driver runs on Linux kernels 2.6.xx, 3.0.xx, and 4.xx on 32-bit and 64-bit architectures. It supports the UBR, CBR, VBR and ABR QoS and manages the OAM cells automatically. It is provided as open source software.

On FreeBSD: Use the new PATM driver. The card and the driver comply with the HARP ATM software and support the UBR, CBR and VBR QoS. There are also solutions for latest OS versions.

• SAR: IDT 77252
• Theoretical Network Data Transfer Rate (OC3): 155.52 Mbps Full Duplex
• Practical Data Transfer Rate: 135 Mbps
• Simultaneous connections: 16384
• VPI/VCI: 14-bit encoding
• Standard Compliance:
  • AAL5, AAL0
  • CBR, VBR, UBR, ABR (SAR)
  • UNI 3.0, UNI 3.1 (ILMI included)
  • LAN Emulation (LANE) v1.0
  • Classical IP (CIP - RFC 1577)
  • SONET/SDH, STS/STM-1/OC3
• PROATM-E155F Fiber ATM port:
  • Cable: multimode fiber, max 2 km.
  • Connector: SC
  • Wavelength: 1310 nm
  • Sensitivity: -29 dBm
  • Output Power: -20 to -11 dBm
• PROATM-E155FM Fiber ATM port:
  • Cable: single mode fiber, max 15 km.
  • Connector: SC
  • Wavelength: 1310 nm
  • Sensitivity: -38 dBm
  • Output Power: -15 to -8 dBm
• PROATM-E155FLH Fiber ATM port:
  • Cable: single mode fiber, max 40 km.
  • Connector: SC
  • Wavelength: 1310 nm
  • Sensitivity: -38 dBm
  • Output Power: -8 to -5 dB
• On board memory: 2MB
• Indicators:
  • Network Activity
  • Driver is running
• PCI Bus: PCI Express x1
• PC Data Transfer: Direct Memory Access (DMA)
• Operating Voltage and Current: 12V 100mA, 3.3V 1.5A max
• Operating Temperature: 5° C to 50° C (41° to 131° F)
• Operating Humidity: 10% to 90%, non condensing
• MTBF: 700 000H
• Size: 145 mm x 75 mm
• Compliance: FCC Part-15 class B
• CE Marking
  • Safety: EN50082-1
  • Emissions: EN 55022 Class A
• RoHS: 5/6
