Main Features
- Cost effectiveness
- Ethernet 10/100 and WiFi connections
- Integrates the KCenter management tool
- Run the Java Multiviewer allowing to see several computers in real time
- Fast mouse response time. Absolute mouse mode.
- Can work with low bandwidth connections over the Internet
- Encrypted TLS/SSL connections
- Zero U very small form factor
Overview

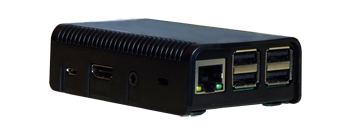

This small IP KVM receiver will allow you to take the hand across the network over any computer connected behind a KMini or KLEv2 single-port IP KVM. In association with KMini or KLEv2 it allows the extension of a USB keyboard, a USB mouse, and a DVI/HDMI monitor with video resolution up to 2148x1152@60Hz.
Management functions. In addition to the Keyboard, Video, and Mouse extension, HViewer can:
- Detect all one-port IP KVMs (KMini and KLEv2) on your LAN, whatever their IP settings
- Display all local and remote IP KVMs in a dynamic list
- Open the management of any IP KVM with a single mouse click
- Backup and restore the IP KVM configurations
- Update the firmware of all IP KVMs in a single operation
- Receive and store the IP KVMs system logs, radius logs, and SNMP traps.
With the Virtual Media feature, an ISO file (for example on a USB key physically connected to HViewer) can appear as a drive connected to the remote computer.
HViewer is delivered with its power adapter. The WiFi interface is integrated. It does not need any extra adapters.
HViewer comes with a one-year warranty and free technical support.
Ordering Information. HViewer-PI3: IP KVM Receiver
Technical Spec.
|
Motherboard |
Raspberry PI 3 model B |
|
Processor |
Broadcom BCM2387 chipset. 1.2GHz Quad-Core ARM Cortex-A53 |
|
Network Connections |
Ethernet 10/100 BaseT and Wireless 802.11 b/g/n |
|
WiFi Interface |
Integrated |
|
Memory |
1GB LPDDR2 |
|
Video |
HDMI (1.4), maximum resolution: 2148 x 1152 |
|
USB Support |
4 x USB 2.0 Type A connectors |
|
Software |
KCenter and Java Multiviewer |
|
Security |
SSL/TLS, Encryption with 256-bit ephemeral keys |
|
Power supply |
External Adapter DC 5V 3A |
|
Temperatures |
Operation: 0 to 40°C; Storage: -20 to 60°C |
|
Humidity |
0 to 90%, non-condensing |
|
Housing |
Plastic, black. |
|
Dimension (L x W x H) |
92 x 61 x 30 mm |
|
Weight |
80 g |
|
Safety / EMI Certification |
FCC, CE |
